High Efficiency Telecom Inverter With Over Load Protection And Alarm

Brand Name : TBB

Model Number : TM252D

Certification : CE,ISO9000

Place of Origin : China

MOQ : 1piece

Price : Negotiable

Payment Terms : T/T

Delivery Time : 1-3days depends on batch order qty

Packaging Details : Carton box

Max Capacity : 6Kva

Power : 1.5KVA(1.2KW)

DC input : 110Vdc

Size : 19"3U

Installation : Subrack 19"

AC output : 230VAC/50HZ

Brand : TBB

Contact Now

Telecom Inverter N+1 HTM250 modular inverter system 110VDC/1.5KVA Max 6KVA

HTM250 is a inverter system integrating TM250 inverter module and TJ10 module. It is a truly redundant system offering functions of pure sine wave inverter, static transfer switch and monitor. Single modules are hot plug design which make the maintenance an easy job without interruption to your critical load.

Built in static transfer switch with transfer time 4ms
LCD and LED display with history record
Working mode selectable (AC priority or DC priority )
Relay dry contact
Built in SNMP -Optional
Auxiliary contact x 16
RS485 / RS232 communication port

Feature:

N+1 redundant configuration
Active current sharing technology
Pure Sine Wave, with THD<3%
DC-AC isolation improving system security
Max efficiency up to 89%
Complete protection
Hot plug in technology
Excellent dynamic responses

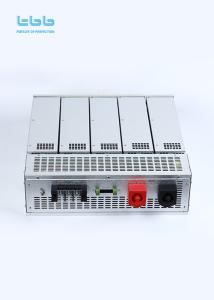

Front Picture

High Efficiency Telecom Inverter With Over Load Protection And Alarm

Side Picture

High Efficiency Telecom Inverter With Over Load Protection And Alarm

Specification

Model	TM251	TM252	TM253
Electrical
Nominal DC input	24 or 48Vdc	48VDC
DC operating range	Refer to 2.3 on Page 9
Output power	1Kva	1.5Kva	2Kva
Wave form	Pure sine wave
Power factor	0.8
Norminal output	110Vac 115Vac 120Vac 127Vac 220Vac 230Vac 240Vac (±2%)		220Vac 230Vac 240Vac (±2%)
Output frequency	50/60Hz ± 1%
THD	<3% liner load
	<5% non-liner load
Crest factor	3:1
Efficiency	Max 85% / 87%
Overload	150% 10s
	125% 1min
Dynamic response time	< 20ms
Others
Operating Temp.	Full load, -10℃ - 40℃
Isolation	1500Vrms
Safety	EN60950-1
Emmission	EN55022
Immunity	EN55022
