TBB Inverter For House 1-4KW 12VDC24VDC48VDC For Simple Solar Hybrid System

Brand Name : TBB

Model Number : CS4040S

Certification : CE,ISO9000

Place of Origin : China

MOQ : 1piece

Price : Negotiable

Payment Terms : T/T

Delivery Time : 1-3days depends on batch order qty

Packaging Details : Carton, Plywood pallet

Brand : TBB

Model : CS4080M

DC input : 24VDC

AC output : 230VAC

Frequency : 50HZ

Power : 4KW

Contact Now

Energie Essential
For Power backup system and simple solar hybrid system
Features
- Bi directional inverter with pure sine wave output
- Can be applied for power backup and solar hybrid system
- High performance desgined for all kinds of home appliances
- TBB premium II multi stage charging algorithm with built in automatic temperature compensation
- Equalization charging program was available
- Cmpatible with majority of cheap generators in the market
- Designed to work with weak grid
- Designed for tropical region with working temperature up to 60℃
- Optional CM was available for automatic generator start
- Dry contacts
- T-Bus compatible(4kw and above)
Spefications

Model No.		12Vdc	CS0625L	CS1040L	CS2080L
		24Vdc	CS0615M	CS1020M	CS2040M		CS3060M	CS4080M
		48Vdc					CS3030S	CS4040S
INVERTER
Nominal Voltage			12Vdc, 24Vdc, 48Vdc
power 30mins @25℃ (W)			600	1000	2000		3000	4000
Cont.power@25℃ (W)			600	1000	1800		2500	3600
Cont.power@40℃ (W)			600	1000	1500		2000	3000
Cos φ			0.9-1
Surge			300%
Output voltage【1】			230VAC or 110VAC ± 2%			230VAC ± 2%
Output frequency			50Hz or 60Hz ± 0.1%
Efficiency (MAX.)	12Vdc		88%
	24Vdc		88%
	48Vdc		92%
Bypass range	UPS mode		184VAC-264VAC/92VAC-132VAC				184VAC-264VAC
	GEN mode		160VAC-280VAC/80VAC-140VAC				160VAC-280VAC
Crest factor			3:1
THD			<3%
Zero load power			17	22	27		36	62
Zero load power (power save mode)			4	5	7		9	15
Output circuit breaker			5A	10A	15A		30A	30A
Overheat protection			auto disconnect
Overload protection			auto disconnect
shortcut protection			auto disconnect

Charger
Nominal Output Voltage		12Vdc, 24Vdc, 48Vdc
Max Output current (A) - adjustable		25/15	40/20	80/40	60/30	80/40
AC Input range	UPS mode	184VAC - 264VAC/92VAC-132VAC			184VAC - 264VAC
	GEN mode	160VAC - 280VAC/80VAC-140VAC			160VAC - 280VAC
Battery types		AGM / GEL / LFP / Flooded
Absorption time		variable
Temperature compensation		-4mV/℃/cell
Charger circuit breaker		5A	10A	15A	30A	30A
Other Data
Transfer time	UPS mode	15ms
	GEN mode	2s
Transfer switch		40A
Battery connector		M8 x 2
AC connector		Terminal block (M3 screw)
Mechanical Data
Enclosure		Steel with powder paint
Dimension (mm)		444x186x135		512x216x176
Net Weight (kgs)		9.5	14	16	18.5	22.5
Cooling		Forced fan
Protection		IP20
Standard
Safety		EN60950-1
EMC		EN55022,EN55024
【1】Output voltage: 220VAC/60Hz for Philippines

Product Tags:

household power inverter

emergency backup inverters

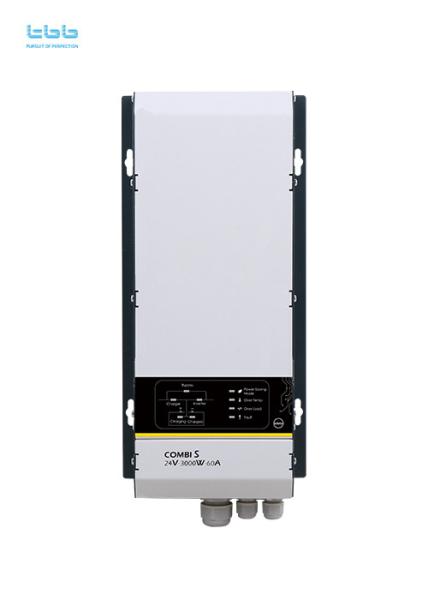

TBB Inverter For House 1-4KW 12VDC24VDC48VDC For Simple Solar Hybrid System Images
